Nailing It Right: Common, Box, and Sinker Nails in IRC Sheathing Attachment.

In residential construction, nails are not just hardware, they are the backbone of a solid structure. The International Residential Code (IRC) knows not all nails are created equal, and at the Conventional Framing Academy, we’re here to help you nail it. This blog compares common nails, box nails, and sinker nails in the attachment wood structural panels to wood framing. Whether you’re a contractor framing a house, an inspector ensuring IRC compliance, a designer or engineer designing a structure, or a DIYer tackling a project, understanding these nail types can make all the difference.

The Fastening Schedule: Your Nailing Roadmap

The IRC’s Fastening Schedule is provided in Table R602.3(1). This is your go-to schedule for typical wood construction nailing requirements. It’s mirrored in Chapter 23 of the International Building Code (IBC) and is a critical roadmap for prescriptive and engineered projects alike. The fastening schedule provides fastening requirements for roof framing members, floor framing members and wall framing members. What makes it especially valuable is its prescriptive nature: it provides ready-to-use fastening guidelines or requirements. This means that designers and engineers can apply them directly without needing to calculate the strength of each connection.

In most cases, the designer will typically copy or reference the fastening schedule in the design drawings at the specifications section. This means that contractors must be familiar – extremely familiar, with the attachment requirements in this schedule. The requirements for the attachment of wood structural panels such as plywood or OSB at the walls, floors and roofs are provided in Items 31 through 33 of the schedule. What stands out here is the fact that common nails are consistently listed as an option, while box nails and sinker nails barely get a mention. Why does this matter? Let’s explore the differences.

Fig 1: Common, Box and Sinker Nail

Nail Types and the Penny Weight System

To begin, we need to decode the penny weight designation. Nails are identified using the penny weight designation, denoted by the letter "d" (like 8d or 10d). This old English system, once tied to the cost per hundred nails, now reflects the relative dimensions of the nails rather than the price. The National Design Specification for Wood Construction (NDS), a key IBC reference, lays this out in Table L4 of Appendix L. It covers penny weights from 6d to 60d. Residential construction typically uses 6d to 16d.

• Common nails and box nails share the same length for a given penny weight but differ in diameter. An 8d common nail and an 8d box nail are both 2.5 inches long, but the common nail’s diameter is 0.131 inches, while the box nail’s is 0.113 inches.

• Sinker nails are slightly shorter than their common nail counterparts for the same penny weight but have the same diameter as a box nail. An 8d sinker, for instance, measures 2⅜ inches.

There’s also a unique option: a 3-inch-long nail with a 0.131-inch diameter—matching a 10d common nail’s length but an 8d common nail’s thickness—listed in the fastening schedule. Other options include deformed nails and ring shank nails, both of which have unique formations (deformations) along the shank to enhance grip. Common, box and sinker nails have smooth shanks.

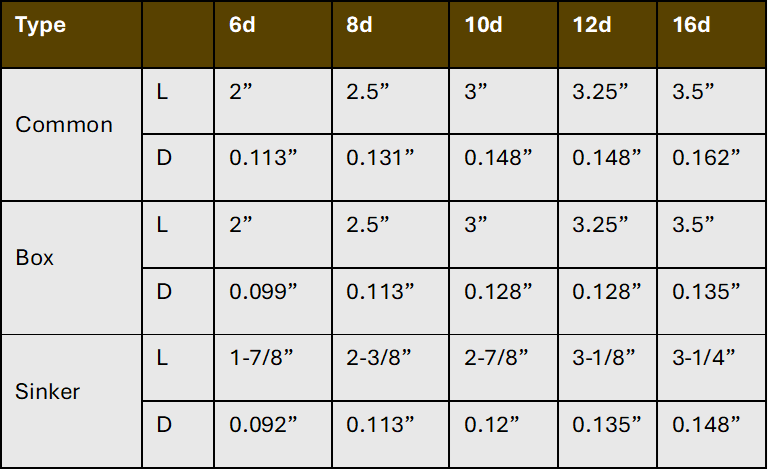

Fig 2: Dimensions of Common, Box and Sinker nails (L = Length, D = Diameter)

What the Code Says: Items 31–33

Let’s dive into Items 31 through 33 of the IRC’s Fastening Schedule. Please note that we are focusing on conventional construction under the 2024 IRC (not engineered designs, where the rules allow for performance-based approaches that are more dynamic). Item 31 through 33 cover wood structural panels like plywood and OSB for subfloors, roofs, and walls, plus particle board sheathing.

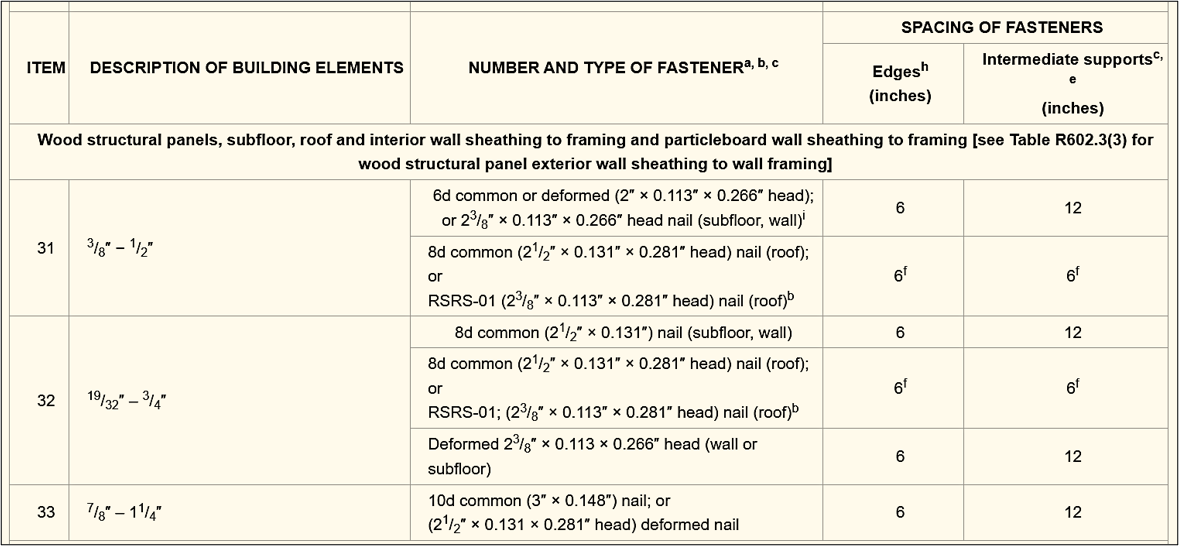

Fig 3: An excerpt of the fastening schedule

• Item 31: For ⅜- to ½-inch-thick panels at subfloors and walls, 6d common nails or deformed nails are allowed. However, box nails are not listed. Only 8d sinkers (2⅜ inches long, 0.113-inch diameter) are listed which means that an 8d sinker can be used in this case instead of a 6d common nail.

Still on Item 31, For roof framing with ⅜- to ½-inch sheathing, the code references 8d common nails or Roof Sheathing Ring Shank (RSRS-01) nails.

• Items 32 and 33: The same pattern holds — common nails, RSRS nails or deformed nails dominate, with box and sinker nails largely sidelined.

• Exterior Walls: The requirements for attaching wall sheathing to exterior walls are provided in Table R602.3(3). These nailing requirements are based on wind pressure loads. These are out of plane loads which means that the nails are holding against withdrawal forces resulting from negative pressures pulling away from the wall. Table R602.3(3) specifies common nails only for the attachment of exterior wall sheathing to the wall — no box or sinker substitutes.

There are exceptions: Section R602.10.6 allows galvanized 8d box nails alongside 8d common nails for wall bracing methods like Alternate Braced Walls or the Portal Frame bracing methods. In general, the dominance of common nails over box and sinker nails for sheathing—especially roofs—in the fastening schedule and the exterior wall schedule is without doubt.

Strength in Numbers: An 8d Example

So, why the preference for common nails? It’s about strength. Common nails are thicker than box and sinker nails and longer than sinkers, giving them a performance edge. Let’s look at an example.

 Let us consider 8d nails attaching 15/32-inch wood structural panels with a 0.42 specific gravity to 2x4 Douglas Fir studs and 0.5 specific gravity. We will use NDS’s Table 12R to determine the reference lateral design value for single shear of the nails. These tabulated values are based on the assumption that the nails are penetrating at least 10 times their diameter into the main member which in this case is the stud.

The reference design shear value for an 8d common nail is 65 pounds while the design shear value for 8d box and sinker nails is 50 pounds which is 15 pounds less than common nails. This means that if we use box nails where the code calls for common nails, we are losing about 23% of that connection’s shear strength. That is a significant drop, and it demonstrates why designers must specify the right nails and why contractors must follow through.

The superiority of common nails also extends to withdrawal capacities. We have seen that nailing regimen required at exterior walls is based on wind pressures which means that withdrawals demands are more critical than shear demands. In this case, if we consider Table 12.2D of the NDS, the withdrawal capacity of an 8d common nail is about 15 - 16 % more than that of a box nail. The difference is higher if you compare the 8d common nail with an 8d sinker which is shorter.

Conclusion

The selection of the right nails in residential construction is a critical factor in ensuring structural integrity and code compliance. The IRC’s Fastening Schedule serves as a definitive guide that undoubtedly emphasizes the superior role of common nails in securing wood structural panels due to their strength and versatility. This prescriptive framework simplifies the process for professionals, offering a reliable standard that balances practicality with performance. For contractors, this means double-checking the drawings and the nails used in construction. For inspectors and engineers, it’s about ensuring that the designs align with IRC standards. And for DIYers, it’s a reminder that the right nail can make or break your structure. Ultimately, this exploration underscores a fundamental truth in conventional framing: precision in fastening choices, as dictated by the IRC, is essential to delivering safe, durable, and compliant structures.

Watch the Full Breakdown

Want to see these nail types in action? Check out our YouTube video, “The RIGHT Nailing for Sheathing, What every Builder needs to know,” where we dive deeper into the IRC Fastening Schedule and show how these nails perform on the job. Visit Conventional Framing Academy for courses on residential structural design.
